STRUCTURE

RCC framed structure with RC foundations conforming to BIS

Pre constructional anti-termite treatment will be provided under foundations, external perimeter of the building as per BIS for the complete building

Walls will be constructed using fly ash bricks set in cement mortar

8" thick brick work (fly ash) for the outer wall 4" thick brickwork (fly ash) for the internal partition wall

All brick work edges are protected with GI strips (as recommended by the architect) and plastered

Ceiling height will be maintained at 9'4" clear for ground floor and 11'6" at the ridge bottom of the roof Slab in First floor

WALL FINISHES

Internal walls will be finished with cement plaster and wall putty (JK or equivalent) and tractor emulsion or equivalent paint

The toilet walls will be finished with imported ceramic tiles from Spain of colors and size as recommended by the architect up to ceiling height

Trims and profiles in PVC will be used to protect the edges of the ceramic tiles

Wash area will be finished with imported ceramic tiles up to roof height

Dado of 2' above the kitchen platform will be finished with imported ceramic tiles from Spain of colors and suitable size as specified by the architect

Exterior faces of the building (including the balconies) will be finished with cement and with emulsion paint - Asian Paints (APEX) or equivalent

Textured finish will be given in certain areas as suggested by the architect plaster

CEILING

Ceiling areas of living, dining, bedrooms, kitchen AND balconies will be finished with cement plaster and wall putty (JK or equivalent) and painted with tractor emulsion or equivalent

Ceiling areas of toilet and other areas will be finished with cement plaster and cement paint

FLOOR FINISHES

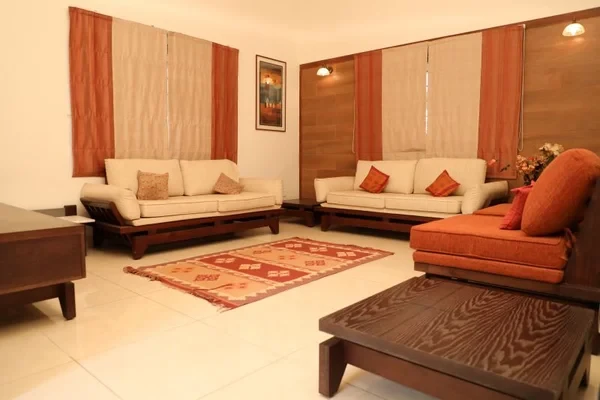

Living, dining and bedrooms will be finished with imported vitrified tiles 2'0" x 2'0" from Spain as prescribed by the architect

Kitchen, utility, balcony and toilets will be finished with imported ceramic tiles from Spain of suitable size as recommended by the architect

4" high skirting matching the floor tile will be provided wherever necessary

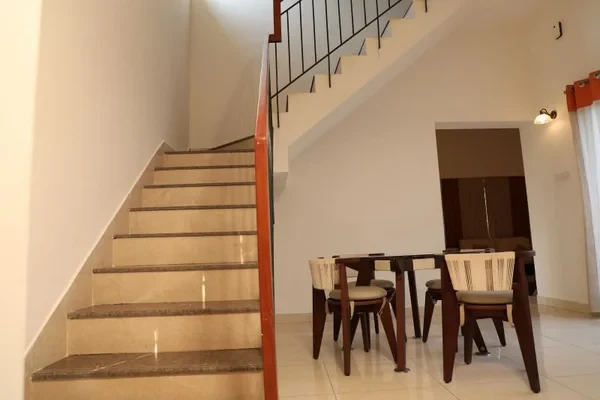

STAIRCASE

Staircase will be finished with polished Granite slabs as recommended by the architect

Staircase walls will be finished with cement plaster and wall putty (JK or equivalent) and Tractor emulsion or equivalent paint

Car parks will be finished with cement tiles Ultra or equivalent as recommended by the architect

DOORS AND WINDOWS

Main door shutter: 45mm thick shutter on both sides with pre-calibrated engineered high density molded Masonite skin (double Panel) and west African teak wooden edge lipping, hinged to west African teak wood frame (100 x 45mm) with bottom threshold and with necessary architrave - finished with Polyurethane Lacquer Paint

Godrej ultra-lock or equivalent make will be provided.

BEDROOM DOOR SHUTTER: 32mm thick shutter on both sides with pre-calibrated engineered high density molded Masonite skin and seasoned solid beach wood frame (100 x 45mm) along with necessary architrave - finished with Polyurethane Lacquer Paint

Godrej cylindrical locks or equivalent make will be provided.

Toilet door shutter: 32mm thick shutter in front with pre-calibrated high density molded Masonite skin, back with plain suede finish HPL laminate with seasoned solid beach wood frame (100 x 45mm) along with necessary architrave - finished with Polyurethane Lacquer Paint

Godrej cylindrical locks or equivalent will be provided

Windows: Powder coated aluminum open able glazed windows will be provided in all rooms with security MS grills

French doors: Powder coated aluminum sliding type French doors will be provided

KITCHEN

Counter top platform (dry fixing) will be finished with 18mm thick granite slabs 2' wide at a height of 2' 9" from the floor level and provided with Carysil/stainless steel single bowl with drain board

Sink cock will be provided

Wash area will have Single bowl Carysil/stainless steel sink and provision for fixing washing machine

Provision for fixing an exhaust fan, ceiling fan, microwave, fridge, grinder etc. and aqua guard will be made

TOILETS

All sanitary ware will be of Roca or equivalent make

Victoria wall hung closets Roca or equivalent will be provided in all toilets

All toilets will have the new range of Roca wash basins

All CP fittings will be of Roca / Parryware or equivalent range

Overhead shower with diverter and spout will be provided in all toilets

All toilets will have provision for connecting a geyser and an exhaust fan

ELECTRICAL

Concealed insulated copper multi-strand wires in all villas

Each villa will have to be provided with distribution board having MCB

All switches and sockets are of MK (Ivory) / Anchor Roma or equivalent make

2 pair telephone line points will be provided in living and all bedrooms

Empty conduits for TV points will be provided in living and all bedrooms
