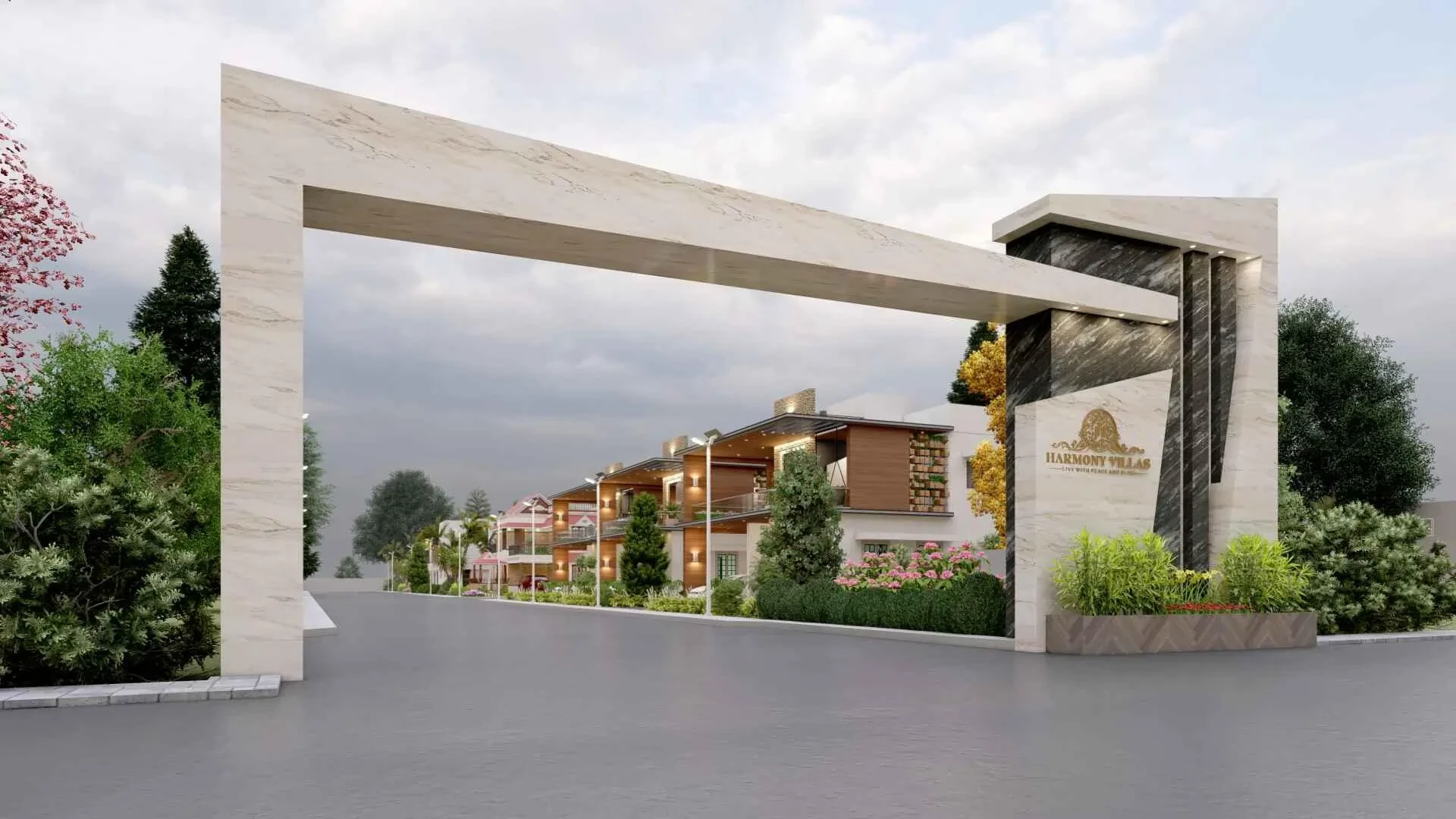

JRD Harmony Villas

Saravanampatti, Coimbatore

Price Range
Rs : 65 L to 1.11 cr

Project Type
Apartments

Location
Saravanampatti ,Coimbatore

Total Units
14 Units

Price Range
Rs.65 L to 1.11 cr

Rate Per Sq.Ft
Rs.6500

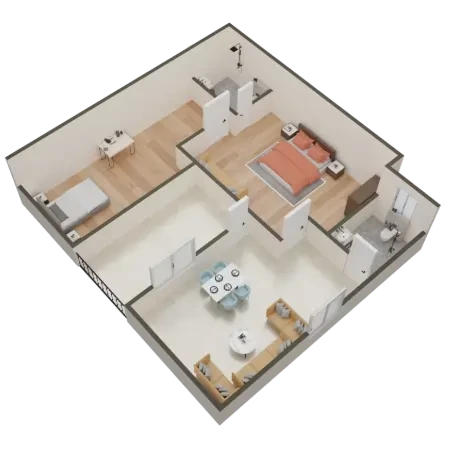

BHK Type
2 BHK

Project Size (Acres)
1 acres

Construction Status
Under Construction

Possession Date
28/07/2026

Unit Sizes
1000 to 2500

Total Blocks
1

Total Floors
1

Rera id
Rera Not Applicable

EXCAVATION Excavation for footing will be done up to a maximum of 4'0"" depth or until hard strata is achieved; whichever is most favourable as per site condition.

FOOTING Footing for columns of depth 6'0"" inclusive of sand bed, and PCC. Footing will be built using M20 grade Reinforced Cement Concrete (@ 1:1,5:3). Footing mat will be fabricated using 10mm steel rods on both sides.

COLUMN PLACEMENT Single storey building: Column height from basement to ground floor roof will be approximately 10'0"" and an extension of 2'0"" above the roof slab will be provided to allow for future expansion. Double storey building: Column height from basement to first floor roof will be approximately 20'0"" and an extension of 2'0"" above the roof slab will be provided to allow for future expansion. Column sizes: Standard column sizes of 1'0"" x 9"", and 9""x9"" will be constructed using 16/12/10 mm steel rods. (Column sizes deviating from the standard sizes is subject to layout planning - however the same sizes of steel rods are applicable as long as the structure remains under 6 storeys high) Column ties: Ties in column will be done using 8mm steel rods.

BACK FILLING & BASEMENT Basement height will be provided to a maximum height of 4'0"" and steps for the same with railings on request will be provided. Backfilling post foundation work will be done with consolidated and compacted gravel.

PLINTH BEAM The basement height will be maintained at 4'0"" from site level. Standard plinth beam size - 16"" x 9"" will be done using 10, 8 mm steel rods.

BASEMENT & SUPER STRUCTURE BRICKWORK Brickwork for the basement will be done using table moulded wire cut bricks and consolidated using cement mortar in the ratio 1:5.
