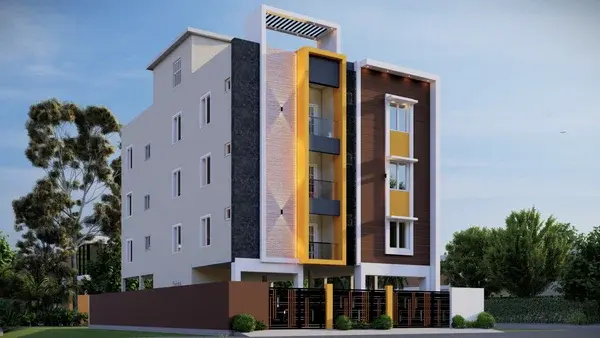

BC Chandra Chromepet | Apartments in Chromepet, Chennai

STRUCTURE

Apartment structure will be of RCC framed structure with RCC columns & beams. Apartment walls will be of brick walls, for inner 4.5” thick & for outer 9” thick. Apartment walls will be of cement plastered, smooth finish for inner & rough finish for outer. Apartment roof height will be of 10 feet from the floor PCC top to Roof top. One open cupboard will be provided in all bedrooms for a size of 4 feet length x 1 feet 6 inches width x 7 feet height with 4 nos of Cuddapah Slab & in kitchen 4 feet length x 1 feet width x 7 feet height with 4 nos of cuddapah slabs. One open loft will be provided in all bedrooms & kitchen at any one wall of the room

TILING

Apartment inner Flooring (except toilet) will be of 4 x 2 vitrified tiles (Tiles Cost – Rs.55.00/sq.ft). Apartment Toilet flooring will be of anti skid 1x1 ceramic tiles only (Tiles Cost – Rs.45.00/sq.ft). Apartment Toilet inner walls will be of ceramic glazed tiles for 7 feet height (Tiles Cost – Rs.45.00/sq.ft). Apartment Kitchen walls will be of ceramic glazed tiles for 2 feet height above the kitchen counter (Tiles Cost – Rs.45.00/sq.ft). Apartment kitchen platform will be of RCC slab with Black color granite top(Rs.120/- per Sq.ft.,) with one number of stainless-steel sink, Model & Brand are Builder choice only (Sink cost - Rs.1,700/- per sink).

CCTV Camera :-

TVT 2MP Doom/Bullet Full HD Camera 8 nos, TVT 2 MP Full HD 8 channel DVR – 1no, 1TB Hard Disk will be provided for CCTV Camera

DOORS, WINDOWS, VENTILATORS

Apartment Main door frame will be of teak with Designer door shutter of builder’s choice only. (Cost of Main door Shutter – Rs.16,000 per shutter) Apartment Bedroom door frames will be of country wood with Pre design door shutter of Builder’s choice. (Cost of door shutter – Rs. 3000 per shutter) Apartment Toilet door frames will be of WPC door frame & shutter Apartment Window frame & shutter will be made of UPVC (Sliding type) with MS Safety grills (12 sq.mm rods normal design pattern) & Mosquito net will provide for the sliding window only. All door ironmongeries are Dorset brand only. For the maindoor alone 5 in 1 digital lock system will be provided from the brand of Dorset. Main door safety grill gate will be provide with 10mm sq MS rod

Lift

Automatic Door 4 passengers lift made of SS Cabin Lift Size 1100 mm x 900 mm x 2100 mm (+5%). (Lift Machine room less) from Magnetech elevators pvt ltd

PAINTING FINISHES

Apartment Ceiling will be painted with primer 1coat & 2 coats of white color Tractor Emulsion Paint without Putty from Asian brand Apartment Inner walls 1coat of primer then 2 coat of smooth putty & 2 coats of light color Premium Emulsion with putty from Asian brand Apartment External walls will be painted with 1 coat of external wall primer & 2 coats of Exterior Emulsion paint from Asian brand Apartment Main door frame & shutter will be varnish finished Apartment Window grills will be painted with 2 coats of Enamel paint From Asian brand

WATER SUPPLY

Apartment Common & Attached toilets will have Floor mounted European water closet with wash basin (white), one health faucet for European water closet, one overhead shower & 2 in 1 wall mixture for Hot and cold water from the Brand of parryware Apartment kitchen will have two taps (one for bore well water & another one for UG sump water) Apartment toilets & kitchen concealed water lines will be done by using of CPVC pipes from Ashrivad/Finolex Apartment toilets & kitchen concealed waste water lines & soil lines will be done by using of PVC pipes from Ashrivad/Finolex Apartment outer plumbing works water line, waste water line & soil line will be done by using of pvc pipes from Ashrivad/Finolex Whole apartments sanitary ware fittings like European water closet and wash basin will be from parryware – Prime single piece (White color) hole apartment toilet, kitchen, service CP fittings will be from Parryware brand –Claret model.

COMMON AREA FINISHES / SECURITY

Common staircase area flooring will be provided Granite floor finish with SS handrail. Parking areas will be finished with parking tiles. Common Two bore wells will be provided with one electrical motor (Motor type will be based on water availability & depth of bore well). Common Septic tank will be provided for 15000 Liters (Capacity including water free board level). Common Underground sump will be provided for 12000 Liter (Capacity including water free board level) Common over-head tank will be provided total capacity of 4000 Liters (For Borewell water 2500 liters and UG Sump water 1500 liters) (Capacity including water free board level) Rain Water Harvesting will be provided at the parking EV Charger – 20Amps socket will provided for EV bikes alone Video door calling system will provide for all flats from the brand of Panasonic

Electrical

Necessary fan & light points in all rooms with 5 amps plug point We provide 2nos-5Amps & 1nos-15 Amps socket in kitchen Washing machine Provision at suitable location Geyser Provision for all toilets A/C Provision in all bedrooms TV provision in living room & Master bedroom Each Apartment will be having three phase supply with concealed electrification Apartment common things like Lifts, CCTV Camera, bore well motor and common lightings will be having three phase supply with concealed electrification. Whole Apartment wiring work will be done by ISI branded Wire cables from ORBIT (FRLS) brand. Whole Apartment switches & sockets will be modular switches & sockets from Anchor Brand (Penta model). EB Main Board will be made of Powder Coated Panel Board
