General

Structure

Structural System : RCC Framed Structure designed for seismic compliant (Zone 3)

Wall : 8? for external walls & 4? for internal walls

Floor Height : Will be maintained at 3300mm (incl. slab)

Termite Control : Anti-Termite Treatment will be done in Foundation, Basement and in Door Frames.

Marble, Granite & Tiling

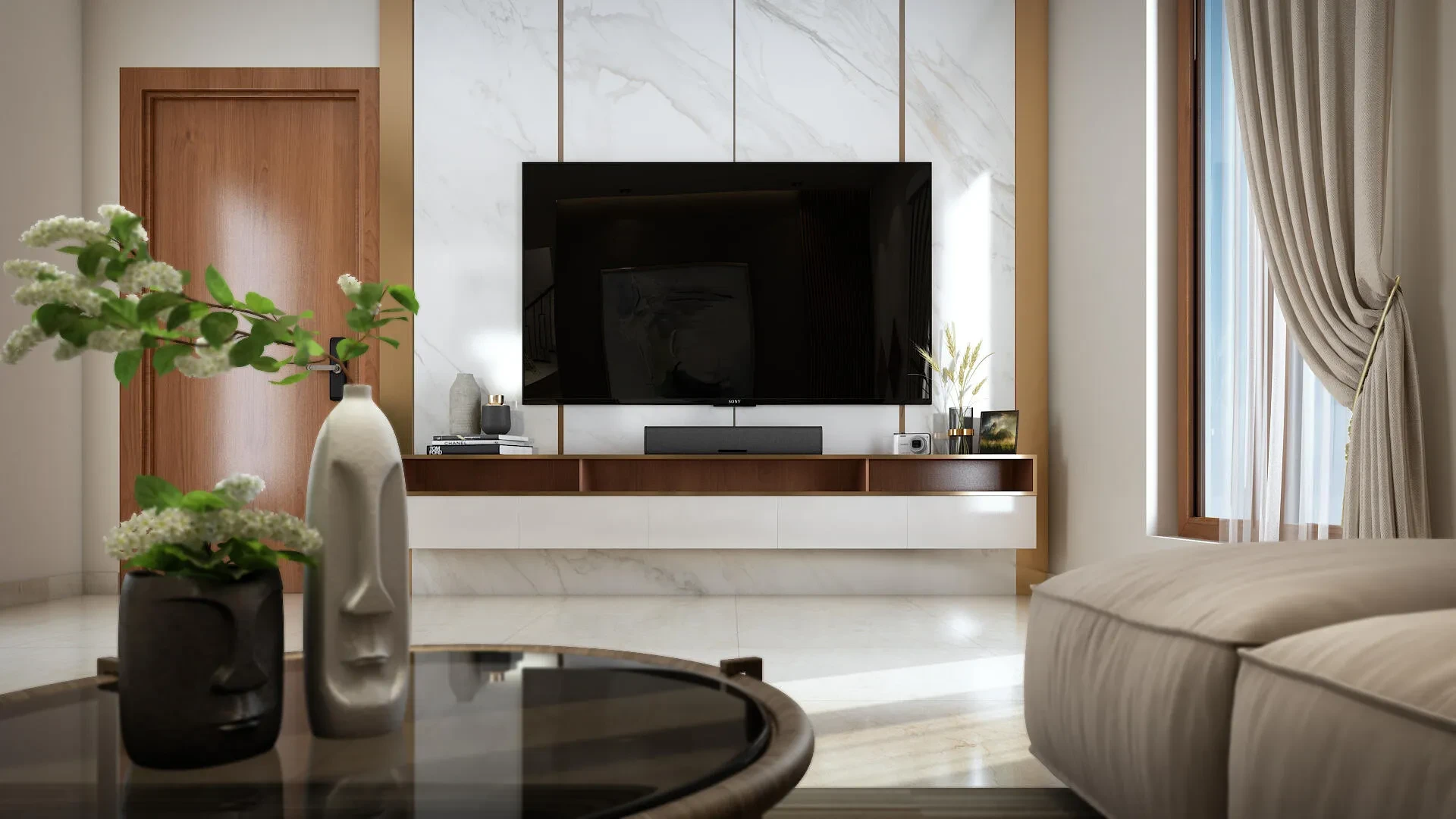

Living & Dining: Italian Marble Flooring with skirting.

Master Bedroom: Wooden Flooring with skirting.

Kitchen, Bedrooms & First Floor Lounge: High Gloss Vitrified Tiles (GVT) measuring 5?-6? x 2?-9?? with matching skirting of 4? height by Sunhearrt / Equivalent.

Kitchen: RCC Platform with Granite slab of 2?-0? wide at height of 2?-8? from the finished floor level. Wall Tile of size 4?-0? x 2?-0? for a height of 2?-0? above the countertop finished level.

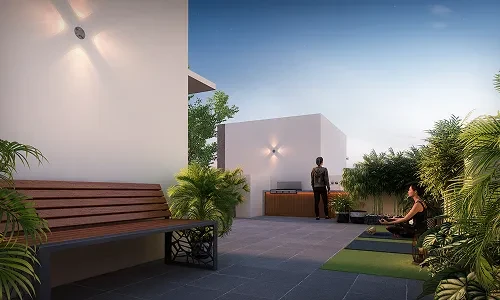

Rooftop BBQ Counter: RCC Platform with Granite slab of 2?-0? wide at height of 2?-8? from the finished floor level.

Restroom: Anti-Skid Tiles for floor measuring 2?-0?? x 2?-0??, High Gloss Vitrified Wall Tiles (GVT) measuring 4?-0? x 2?-0? tiles up to Roof level by Sunhearrt/Equivalent.

Balcony & Backyard Utility: Anti-Skid Flooring Tile.

Foyer, Steps & Landing: Granite Flooring.

Terrace: UV Reflective cool roof tiles.

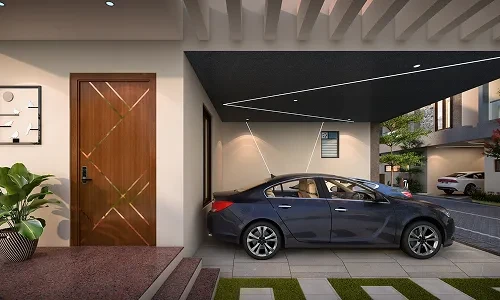

Car Parking: Heavy Duty Parking Floor tiles with matching Skirting.

Doors & Windows

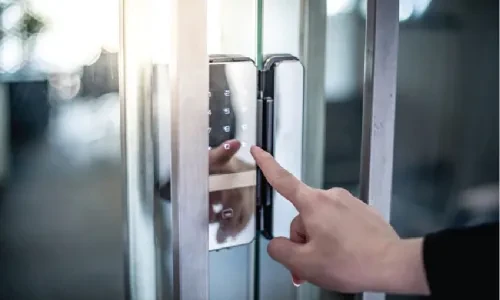

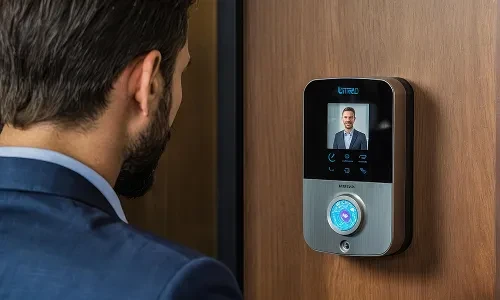

Main Door: African Teak Wood frame and Teak veneered door measuring 4?-0? x 8?-0? with Teak Architrave. Wi-Fi enabled Digital Door Lock with 24×7 Video Surveillance door phone by Dorset / Yale Equivalent. Tower bolt, Door Chain, Door viewer & Door stopper.

Bedroom Door: African Teak Wood frame and Teak laminated door measuring 3?-3? x 8?-0? with Teak Architrave. Mortise Lever Handle Door Lock by Dorset / Yale / Equivalent. Tower bolt & Door stopper.

Toilet/Balcony Door: African Teak Wood frame and WPVC laminated door measuring 3?-0? x 8?-0? with Teak Architrave. Mortise Lever Handle by Dorset / Yale / Equivalent with Latch.

Headroom Door:Polished Metal Door measuring 3?-3? x 8?-0? with Architrave.

Windows: All the Windows are Powder Coated Aluminium Frames and clear glass open type shutters. Kitchen- Sliding type with Clear glass Ribbon window. Granite coping for all window bottoms.

French Doors: French door is Powder Coated Aluminium Frames and clear glass with sliding shutters.

Toilet Ventilators: Powder coated Aluminium ventilators with Exhaust fan provision and movable louvered glass.

Electrical

Power Supply: Three-phase connection will be provided.

Safety Device: Main board will be fixed with Mini Circuit Breakers, ELCB. Main switch connected to consumption meter as per TNEB’s regulation.

Wires & Conduits: Fire Retardant Low Smoke Copper wires (Polycab/Havells/Equivalent) will be concealed in PVC conduits connected to quality brand (GM/Snider/Crabtree/Equivalent).

Switches: Home Automation Touch switches in Living, Dining & Master Bedroom

Living Room: Provided with two wall Light points, two Fan points, one Chandelier point, five 6A sockets and provision for Telephone, LAN, TV and A/c point.

Dining Room: Provided with two wall Light points, one Fan point and one 6A socket.

Family Lounge: Provided with two wall Light points, one Fan points, five 6A sockets and provision for Telephone, LAN, TV and A/c point.

Master Bedroom: Provided with four 6A sockets, one Fan point, two Light points. 2 Way Switch for Fan & one Light Point and provision for Telephone, LAN, TV and A/c point.

Bedroom: Provided with two 6A sockets, one Fan point, two Light points and one A/c point. 2 Way Switch for Fan and one Light Point.

Kitchen: Provided with three 6A sockets, one 16A socket, two Light points, one 6A Chimney point, One 6A socket for R.O, One 16A for Fridge, One 16A for dish washer.

Headroom Wash Area: Provided with one light point and one 16A point for washing machine.

All Toilets: Provided with one light point, one mirror light point, one Exhaust fan point, one 16A socket for Geyser and one 6A socket.

Balcony: Provided with three light point with lights installed.

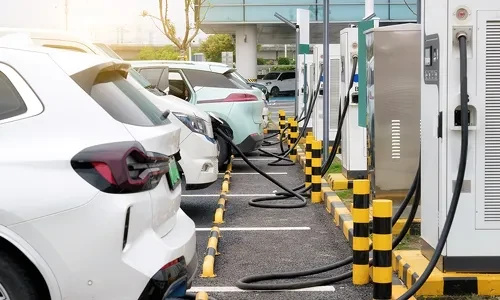

Car Parking: EV Charging port in Car parking, 3 Ceiling light point with lights & Strip lights installed, one 16A socket.

Foot Lamp: Foot lamp provision in all Bedrooms.

Inverter: Inverter point provision for all light/ fan points and 6A Sockets.

Plumbing

Plumbing Lines: Internal Plumbing lines- CPVC Pipes (Finolex / Supreme / Equivalent).

External Plumbing Lines: UPVC pipes (Finolex / Supreme / Equivalent).

Master & Secondary Bathroom: Rain shower along with wet area glass partition in Master Bathroom, Diverter, 2 in1 spout with hand shower, Wall mounted EWC with Concealed flush tank and health faucet, Granite countertop Washbasin will be white colour Porcelain (Kohler / Toto/ Equivalent) with SS Bottle trap & Geyser point. Stop cock for toilet control. All the taps and Plumbing fittings will be (Kohler / Toto / Equivalent).

Other Bathrooms: Over Head shower, Diverter, single piece spout, Wall mounted EWC and health faucet, Granite countertop Washbasin will be white colour Porcelain (Kohler / Toto / Equivalent) with SS Bottle trap & Geyser point. Stop cock for toilet control. All the taps and Plumbing fittings will be (Kohler / Toto/Equivalent).

Kitchen: Stainless sink with pull out sink Faucet (Kohler / Toto/Equivalent) & RO Water point.

Rooftop BBQ Counter: Stainless sink with sink cock (Kohler / Toto / Equivalent).

Dining: Granite countertop Washbasin in Dining Area with wall Tiling.

Backyard & Car Parking: Utility & Car wash Tap provided with outlet drain.

Painting

Internal Walls: Two coats putty, One coat Primer and two coats of Premium emulsion Paint (Asian Paints).

Ceiling: Two coat filling putty, One coat putty, One coat primer & Two coat Premium emulsion Paint (Asian Paints).

Exterior walls: Texture Putty with One coat Exterior primer and Two coats Apex Ultima color as per architect design.

Doors & Grill: Door Frames and Grills are painted with Primer one coat and Two coat Enamel paint.

Main Door: Main door will be coated with varnish.

Grill Work

Windows: All the Windows are fixed with MS safety grill.

Balcony Handrail: The balcony is fixed with Aluminium powder coated Handrail with glass as per architectural design.

Staircase Handrail: The staircase is fixed with MS Handrail with wooden top railing as per architectural design.

Terrace: Cloth drying hanger in Terrace.

Exterior Features

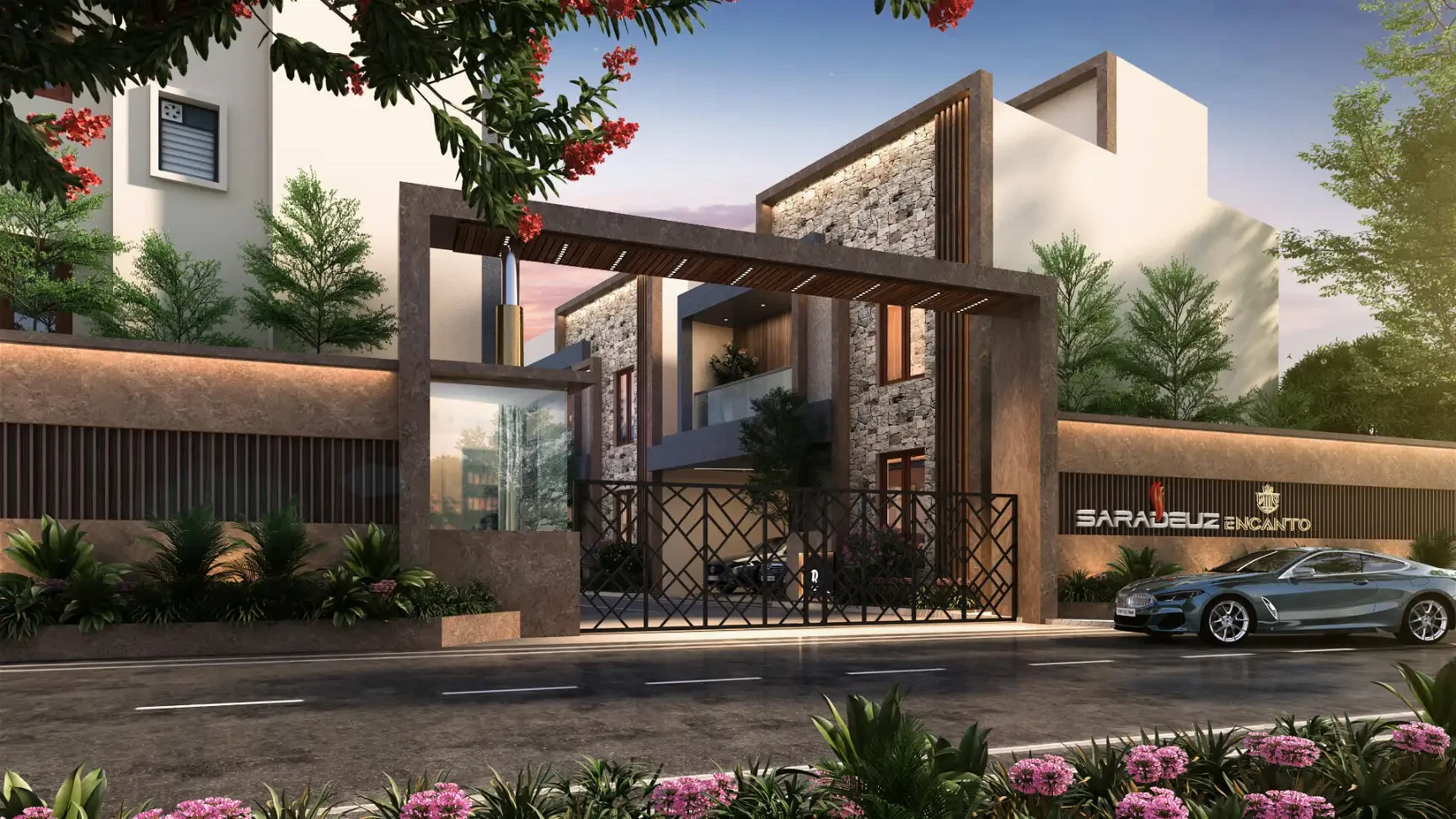

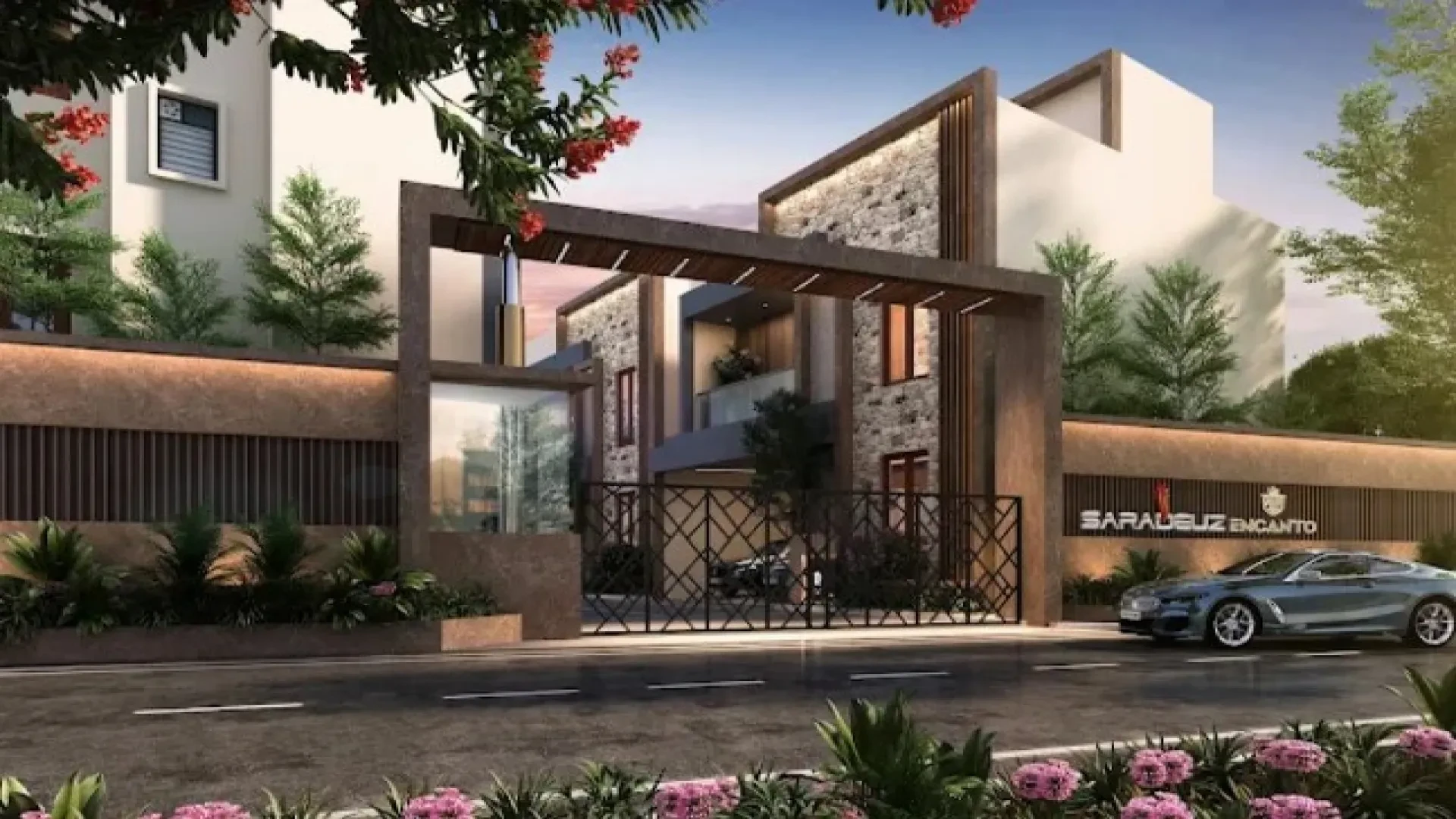

Entrance Arch: Architectural Designed Entrance arch with 6 feet height Gate.

Compound Wall: The site perimeter is fenced by 6 feet height compound wall.

Security: 24/7 Security service with security booth and MY GATE app.

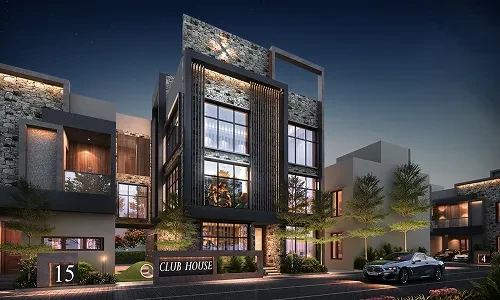

Safety: CCTV surveillance camera at Entrance, around boundary, Driveway Junction, Club House, Children’s Park.

Water Storage: Centralized UG sump with Water Treatment Plant will be provided.

Sewage Treatment: Centralized Sewage Treatment Plant will be provided as per Requirement.

Power Back Up: 4BHK: 1000 W & 3BHK: 750 W. Common area comes with 100% Power backup.

Rainwater Harvesting: Water will be conserved with Rainwater Harvesting methods.

Landscape: Landscape with plants is planted in front of Villa and Park as per architectural design.

Driveway: Rubber Mould Paver block as per architectural design & Convex mirror for safe turning in driveway in/out.
